12 Volt Planet Wiring Diagrams

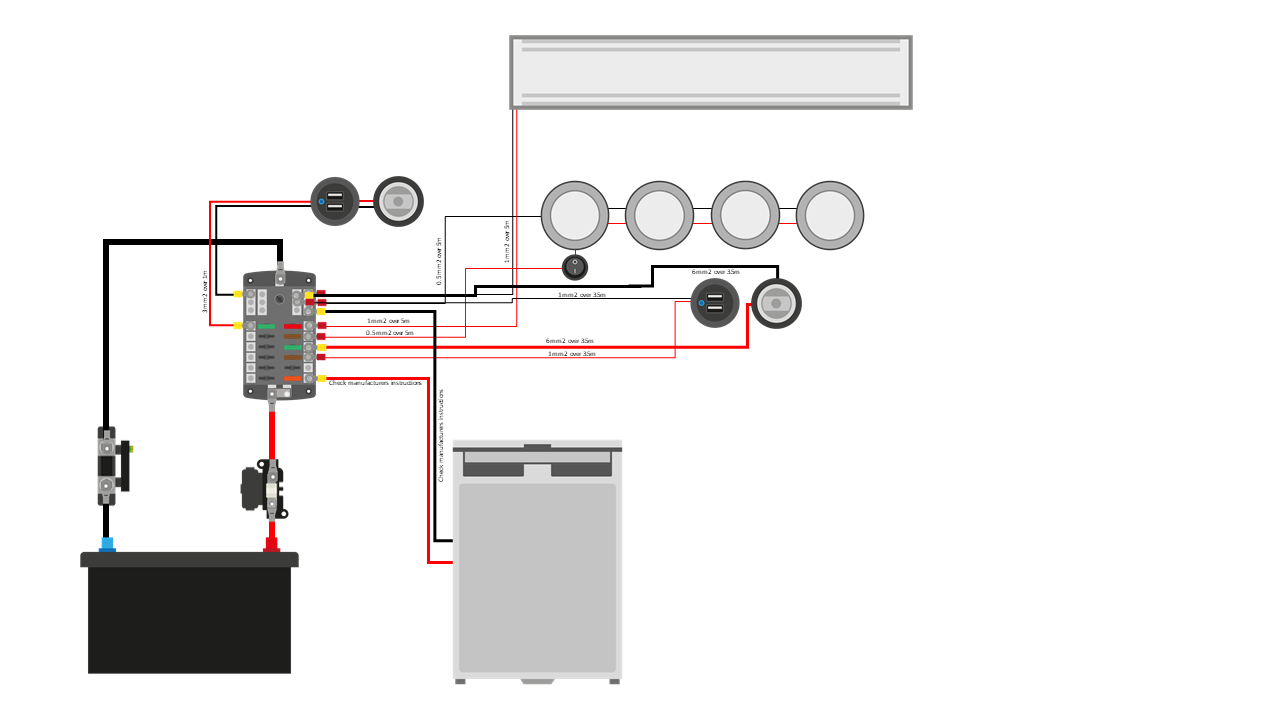

Accessories Wiring Diagram

Basic wiring diagram showing how a fusebox can be used to send power to multiple accessories and protect the circuit.

---

  Click image above to enlarge

  Click here to Download PDF

DC-DC,Mains & Solar Wiring Diagram

DC-DC, Mains & Solar - Basic wiring diagram showing how to connect 3 charging sources from DC-DC, Solar and Mains to 1 battery.

---

  Click image above to enlarge

  Click here to Download PDF

Small Van Build Wiring Diagram

Small Van Build - Basic wiring diagram for a day van with USB, 12V sockets, lights and a fridge.


---

  Click image above to enlarge

  Click here to Download PDF

Large Van Wiring Diagram

Large van wiring diagram with 2 leisure batteries & 2 solar panels for longer stays off grid.

---

  Click image above to enlarge

  Click here to Download PDF

Disclaimer - The information contained in these articles is provided in good faith and we do our best to ensure that it is accurate and up to date, however, we cannot be held responsible for any damage or loss arising from the use or mis-use of this information or from any errors or omissions. The installer is ultimately responsible for the safety of the system so if you are in any doubt, please consult a qualified electrician.
