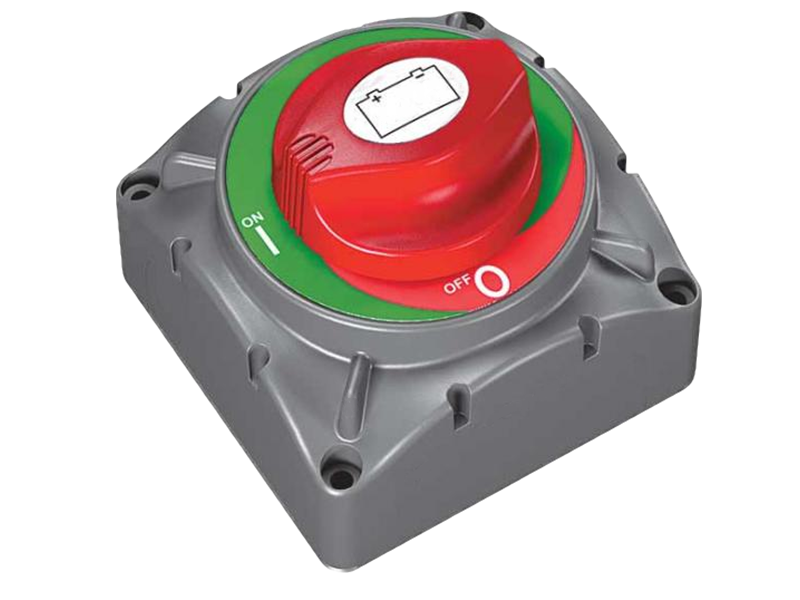

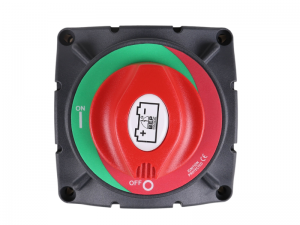

BEP 720 Heavy Duty Battery Isolator Switch - 600A Cont., 48V Max
BEP 720 Heavy Duty Battery Isolator Switch - 600A Cont., 48V Max
BEP 720 Heavy Duty Battery Isolator Switch - 600A Cont., 48V Max

BEP 720 Heavy Duty Battery Isolator Switch - 600A Cont., 48V Max

£99.47
(£82.89 Exc. VAT)
2 in stock
+
Product code
P03406
Brand
Current Rating
600A
Number of positions
2
Ignition Protected
Yes
Description

This 720 Heavy Duty Battery Switch from BEP is a robust ON/OFF master switch for larger vessels and higher current systems. To provide flexible installation options, the switch can be recess-mounted or surface mounted and fits into the same contour locking system as found in BEPs battery distribution system.

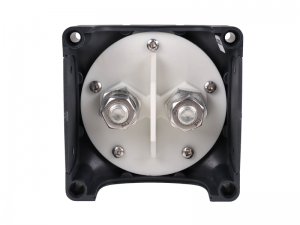

The removable back cover protects the exposed terminals which prevents damage and accidental shorting and meets ABYC specifications. Removable side panels in the body of the unit allow for various cable entry options and this switch is ignition protected for safe use in engine compartments and spaces containing fuel.

BEP tests its battery switches to UL 1107 for Continuous (1 hour), Intermittent (5 minutes) and Cranking (engine starting - 10 seconds) operation. The test is to determine the maximum current the switch can handle for the stated time without the rear terminals exceeding 100°C above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features

  • For use in battery systems up to 48V DC
  • Recessed or surface mounting
  • 600A continuous rating
  • 2500A cranking rating
  • Self-cleaning sliding contacts
  • Ignition protected
  • Meets ABYC standards
Specifications
  • Current rating - continuous: 600A max.
  • Current rating - intermittent: 800A
  • Current rating - cranking: 2500A (10 sec max.)
  • Voltage rating: 50V DC max.
  • Switch operation: ON/OFF
  • Terminal material: Tin-plated copper
  • Corrosion-resistant fixings: Yes
  • Terminal size: M12
  • Ignition protected: Yes
  • Overall dimensions: 90 (L) x 102 (W) x 102 (H) mm
  • Overall weight: 0.54kg

Part Number : BEP-720

Bar Code : 870216000572
