Description

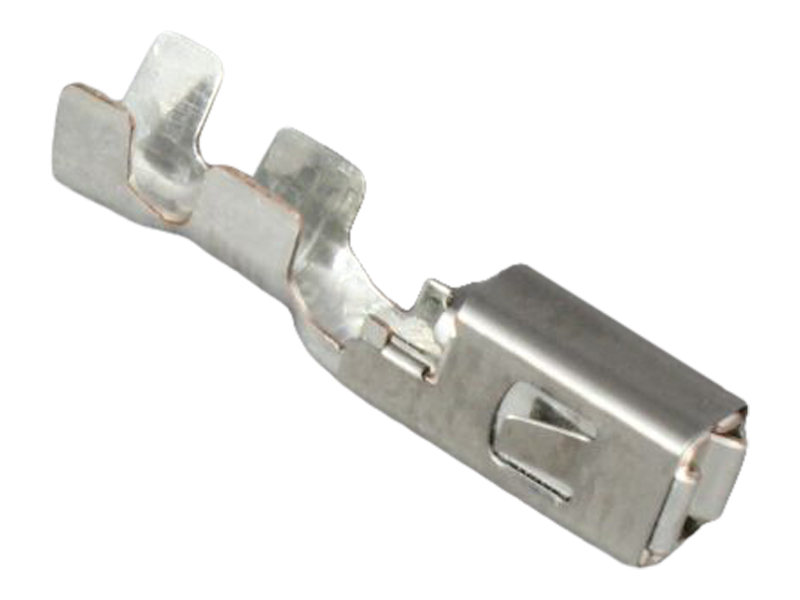

Non-insulated crimp terminal for mini blade fuses. Can be used in any of the modules that hold mini blade fuses from the MTA modular fuse and relay system.

Terminals are crimped and/or soldered to the cable and then inserted into the appropriate slots in the underside of the module. Features on the terminals ensure that they can only be inserted in the correct orientation. Yellow secondary locking bars on the module should then be pushed into place to prevent accidental terminal removal.

2 terminals per fuse are required

Sold individually.

Specification

• ​MTA Terminal Type: ​Mini F280
• MTA Part Number: ​1108330
• Material: Tin-plated copper
• Fitment: Mini blade fuse legs/terminals
• Cable size: 0.35 - 0.75mm^2​

Further information

The following tools can be used to crimp this terminal:

P00454, P00456 or P00455
