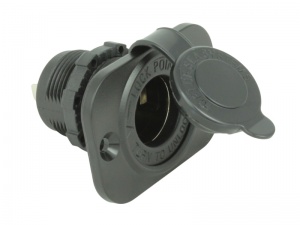

Blue Sea Systems Weatherproof 12V DC Socket

Description

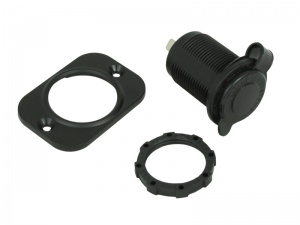

Weather-proof 12 Volt DC socket from Blue Sea Systems designed to withstand the rigors of wet environments and constant vibration found in marine use. The plug/socket design features a twist-lock system to securely hold the two together. Corrosion resistant materials are used throughout and large contact surfaces ensure good electrical connection and minimal voltage drop. A water-tight rubber cover protects against moisture ingress when the socket is not in use and an optional facia plate is included.

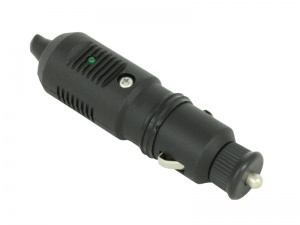

Note: This socket should only be used with matching weather-proof plugs from the Blue Sea Systems range. Compatibility with non-Blue Sea Systems products cannot be guaranteed.

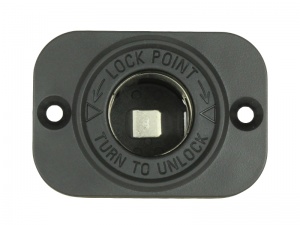

Twist-Lock connection: Line up contacts on plug sides with arrows on socket and push in. Twist and pull plug to remove.

Sold individually.

Specification

• Nominal voltage rating: 12V DC
• Max. voltage rating: 15V DC
• Current rating: 15A max.

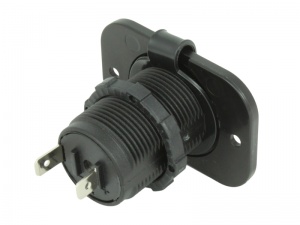

• Connection type: 6.3mm male blade terminals
• Material: Plastic housing, rubber cover & nickel-plated copper alloy contacts
• Panel hole diameter: 30mm
• Overall dims: 55 (L) x 36 (dia) mm
• Facia plate dims: 60 (L) x 43 (H) x 5 (D) mm
• Facia plate mounting hole dia: 4mm
• Blue Sea Systems part no. 1011
