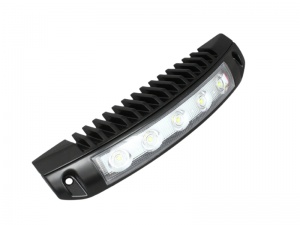

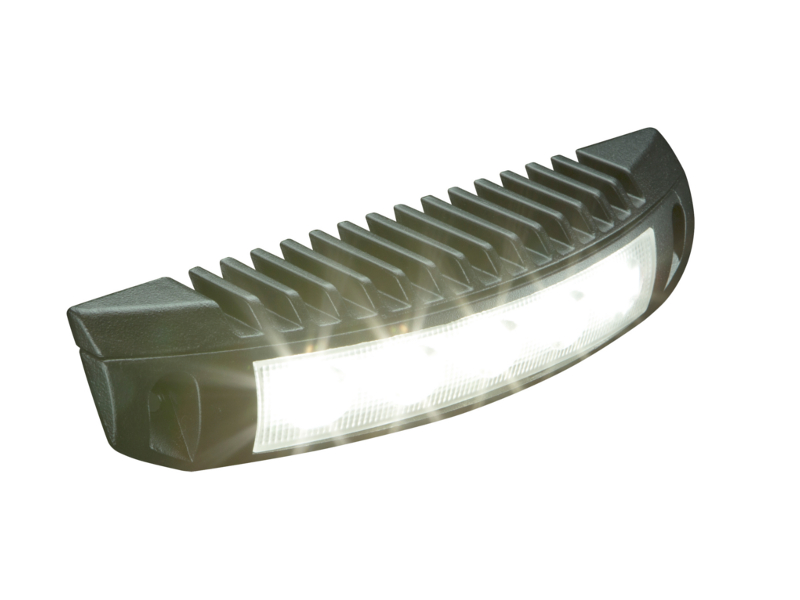

The S17 Scenelite is a powerful surface-mounted exterior LED lighting unit designed for installation on the rear or sides of a vehicle. The curved LED array projects light downwards and outwards to illuminate a wide area next to the vehicle, ideal when sitting or working outside at night. Designed and manufactured in the UK by LED lighting experts Labcraft it features high output CREE LEDs that provide over 1400 lumens to illuminate an area of approximately 30m2. The robust aluminium housing draws heat away from the LEDs, ensuring a long life, and is fully waterproof (IP67 rated when used with foam gasket) with potted electronics to resist pressure washing.

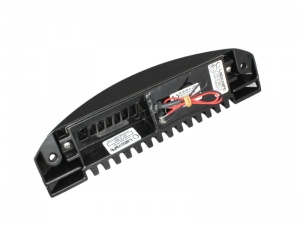

Termination is via flying leads (+ve to red, -ve to black) that exit at the centre rear of the light and a foam gasket is supplied that fits between the light and the mounting surface. Please note that this light does not have a switch.
Suitable for use with both 12v and 24v systems in motorhomes, caravans, campervans, horseboxes, 4x4s and commercial vehicles.
Designed and manufactured in the UK. This light is E-Type approved and comes with a 10 year warranty.
Fixings not included.
- LEDs: 5 High Output CREE
- Housing colour: Black
- Light colour: Cool white
- Light output: 1420 lumens
- LED power: 12.5W
- Operating voltage: 10-32V DC
- Average current draw: 1.25A@12V, 0.6A@24V
- Material: Cast aluminium
- IP rating: IP67
- Cable length: 200mm (approx.)
- Operating temp range: -30 to +40ºC

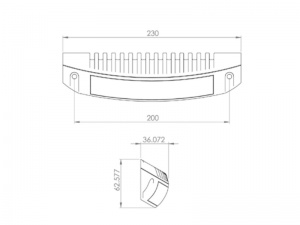

- Overall dimensions: 230 (L) x 63 (H) x 36 (D) mm
- Distance between fixing hole centres: 200mm
- Fixing hole dia: 5mm
