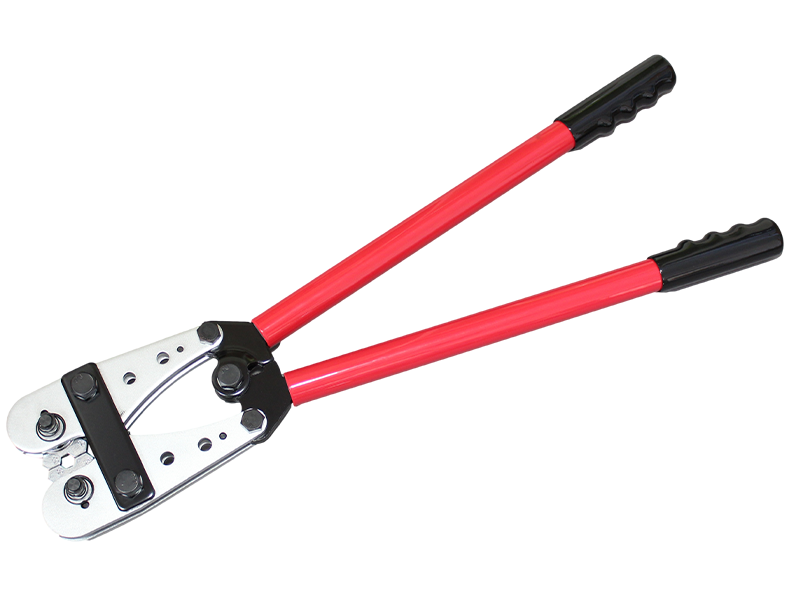

Copper Tube Terminal Hexagon Crimping Tool 10 - 120mm²

+ £152.01

(2 Reviews)

Please allow an additional 2-3 working days delivery for reels of cable.

By-the-metre cable is supplied as a continuous length (max. 10m). In the unlikely event this is not possible (e.g. we need to take from 2 reels) we will contact you before despatch.

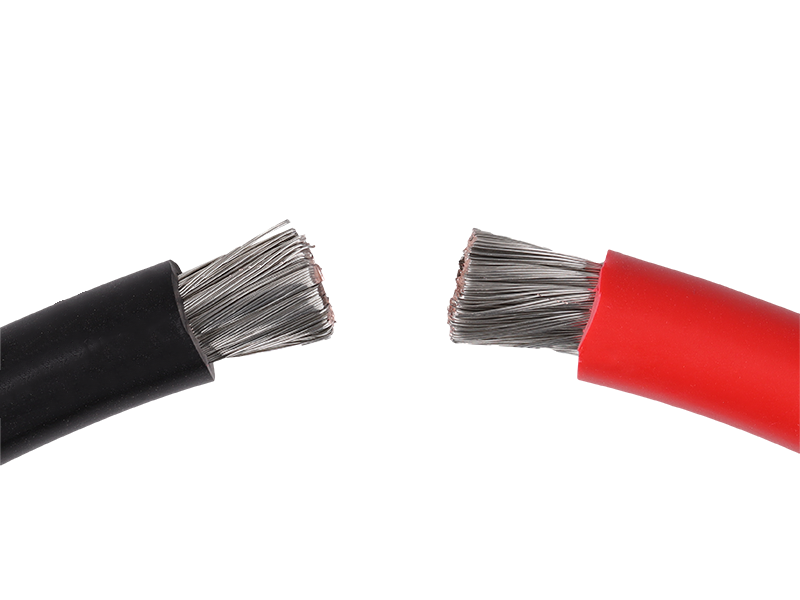

Extra Flexible Tinned Copper PVC Battery Cable - 70mm² 485A

View large image

Description

70mm² extra flexible PVC marine grade battery cable with tinned copper conductors, making this especially suitable for marine and other harsh environments where corrosion of plain copper can occur. Can also be used as welding cable.

Extremely flexible and easy to route where needed.

Sold by the metre and in 10m, 30m & 50m reels.

Specification

Nominal current rating: 485A
No./size of conductors: 912/0.30mm
Conductor cross section: 70mm²
Maximum overall cable diameter: 15.5mm
Resistance per m at 20^oC: 0.000281Ω
Conductor material: Tinned copper
Insulation material: PVC
Working temperature range: -30^oC to +70^oC
Chemical resistance: Petrol, lubricating oils, acids and highly moisture resistant

For help on how to select the best cable for you check out our YouTube Video
