AMC Extra Flexible PVC Battery Lead With 8mm Terminals - Black 70mm² 485A
AMC Extra Flexible PVC Battery Lead With 8mm Terminals - Black 70mm² 485A

AMC Extra Flexible PVC Battery Lead With 8mm Terminals - Black 70mm² 485A

£13.14
(£10.95 Exc. VAT)
(1 Review)
+
Product code
P03248
Brand
Cable Size
70mm²
Description

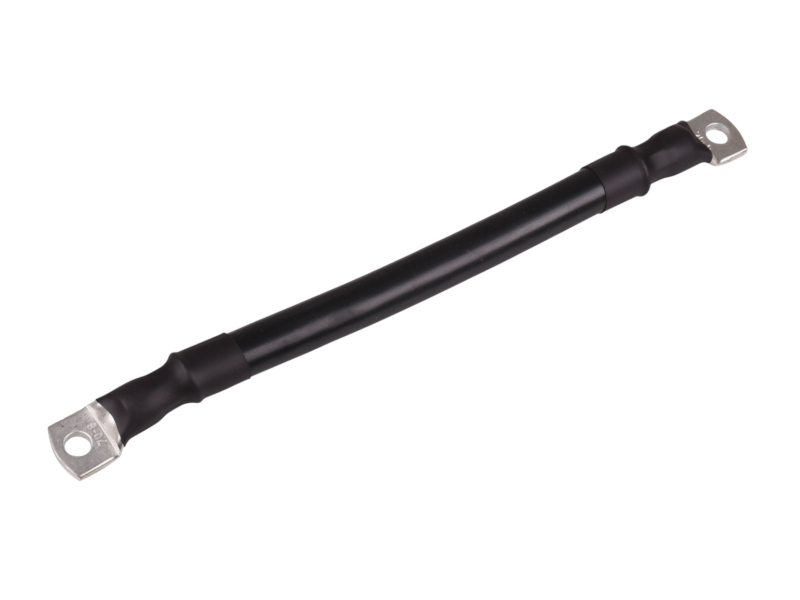

AMC black, 70mm² extra flexible PVC battery leads with 8mm copper tube terminals fitted to both ends. Ideal for interconnecting 12V batteries when wiring them in series or parallel banks.

Manufactured from extra flexible PVC-sheathed cable with 485A nominal current-carrying capacity that is designed for tough working environments and suitable for low voltage auto and marine applications.

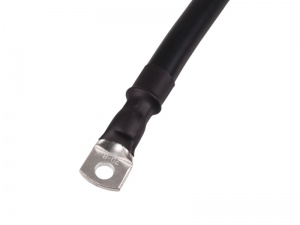

The tin-plated copper tube terminals are crimped to the cable using a high surface-area hex crimp which ensures good electrical contact and high pull-off force. The crimp area is covered with colour-matched heat-shrink sleeving to electrically insulate and provide environmental protection.

Various lengths are available (the length is the distance between the terminal hole centres and the tolerance is +/- 5mm).

Specifications
  • Nominal current rating: 485A
  • No./size of conductors: 905/0.30mm
  • Conductor cross section: 70mm²
  • Maximum overall cable diameter: 15.5mm
  • Resistance per m at 20°C: 0.00029 Ω
  • Conductor material: Copper
  • Insulation material: PVC
  • Working temperature range: -30°C to +70°C
  • Chemical resistance: Petrol, lubricating oils and acids
  • Terminal hole size: 8mm
  • Terminal material: Tin-plated copper
  • Tolerance on length: +/-5mm

Part Number : BS12V13B.5
